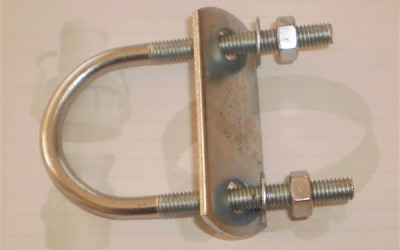

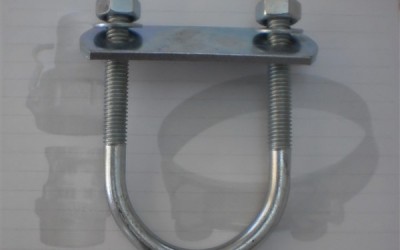

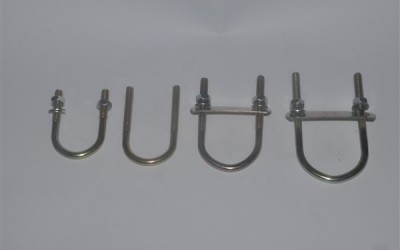

U Type Long Clamp Capped
Ürün Detayı
Model Name: U Type Clamp
Place Of Origin: İstanbul-Turkey
Manufacturer: Simatlas Metal Tekstil İthalat İhracat San.Tic.Ltd.Sti
Model No: Kau.107-112
Brand Name: Kalkan
Specifications
Material: Galvanized İron
Color: Galvanized Plated
Common Bandwith: M 6 – M 12
Packaging Details: 1 Outer Box İnside Plastic Bags
| NOMİNAL | O.D.OF PİPE/ | ŞAPKA | BOLT | DİŞ | ||
| PİPE | HOSE/TUBE | KALINLIK | METRİC | UZUNLUĞU | BOY | |
| İNCH | MM | c | M | B | H | |
| 1 / 2″ | 21..3 | 24 | 1,50 mm | 8 | 50 | 80 |
| 3/4″ | 26..9 | 30 | 1.50 mm | 8 | 50 | 90 |
| 1″ | 33,7 | 37 | 2.00 mm | 8 | 55 | 100 |
| 1 1/4″ | 42,4 | 46 | 2.00 mm | 8 | 60 | 110 |
| 1 1/2″ | 48,3 | 52 | 2.00 mm | 8 | 70 | 120 |
| 2″ | 60,3 | 64 | 2.20 mm | 8 | 75 | 130 |
